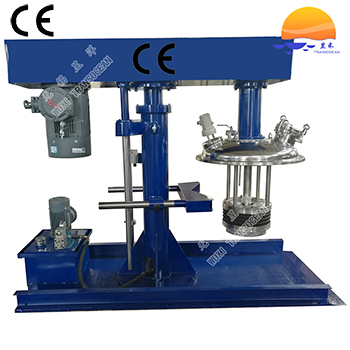

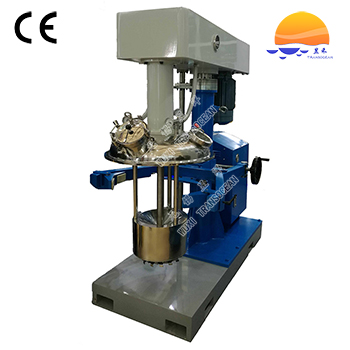

² Characteristics:
l Integration of grinding peg and impeller
l Impeller shall mix grinding media and force grinding media to circulate in movable tank, while grinding pegs drive ZrO2 beads to impact and grind grinding media
l Less dead area in material tank
l Vacuum equipment to eliminate air bubble simultaneously during grinding
l Material of grinding peg: ZrO2
l Material of wetted parts: S.S.304
l Movable tank with cooling jacket
l Easy to clean and change product
² Application:
l Wet grinding of paint, ink, printing ink, color paste, adhesive, dye, pesticide, etc.
² Technical data:
Model | LSZ-3 | LSZ-10 | LSZ-20 | LSZ-40 |
Basket volume(L) | 3 | 10 | 20 | 40 |
Tank volume(L) | 100 | 230 | 450 | 500-1000 |
Main motor power(KW) | 7.5 | 11 | 22 | 37 |
Rack lifting mode | By hydraulic cylinder |
Hydraulic motor power(KW) | 0.55 | 0.75 | 1.1 | 2.2 |
Main shaft speed(r.p.m) | 0-1450 | 0-800 | 0-600 | 0-500 |
Grinding media | Φ1.8-2.2mm 94.50%+ ZrO2 bead |
Vacuum(MPa) | Max. -0.08 |
² Optional part:
l Cooling jacket outside grinding basket
