² Introduction:

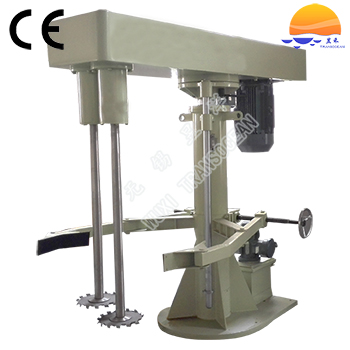

A twin shaft high speed disperser characterizes twin dispersing shafts which are different in length. A saw-tooth type dispersing disc is mounted on each shaft. The disperser head can be hydraulically raised for loading/unloading of a material tank. A fixed tank lid or two semi-circular lids are available for preventing powders and solvents from escaping from the container during processing. The two discs turn simultaneously in opposite directions and mitigate the herd behavior of products following the movement of dispersing blades. Various working capacities are available for option.
² Characteristics:
l Dispersing disc: saw-tooth shape
l Dual dispersing blades shall run simultaneously in opposite direction and mitigate herd behavior of materials following the move of dispersing blades
l High efficiency of dispersion and dissolution of liquid-liquid / liquid-solid materials
l Material of wetted parts: S.S.304/S.S.420/Chrome plated #45 steel
l Dispersing head lifting/lowering mode: by hydraulic cylinder
l Dispersing head lowering speed: adjustable with regulating valve
l Easy to clean and change product
² Applications:
l Wet dispersing of paint, dye, printing ink, papermaking, adhesive, etc.
² Technical data:
Model | FLB-11 | FLB-22 | FLB-30 | FLB-45 | FLB-75 |
Main motor power(KW) | 15 | 22 | 30 | 45 | 75 |
Main shaft speed(r.p.m.) | 0-1200 | 0-1200 | 0-1200 | 0-1200 | 0-1200 |
Speed control mode | By inverter | ||||
Dispersing disc dia. (mm) | 200 | 300 | 300 | 350 | 400 |
Lifting/lowering stroke(mm) | 900 | 1200 | 1200 | 1400 | 1600 |
Hydraulic motor power(KW) | 0.55 | 0.75 | 0.75 | 1.1 | 2.2 |
Tank volume(L) | 500 | 750 | 1000 | 2000 | 3000 |
² Remark:
l Floor mounting type (FLB) and Platform mounting type (FXB) are alternative.
l Movable tank or platform type tank shall work with HSD
l Technical data of each model can be customized.
l High power HSD (up to 315KW) not listed can be customized.
² Optional part:
l Belt type clamping arm or mechanical scissor type clamping arm
l Tank lid
