² Introduction:

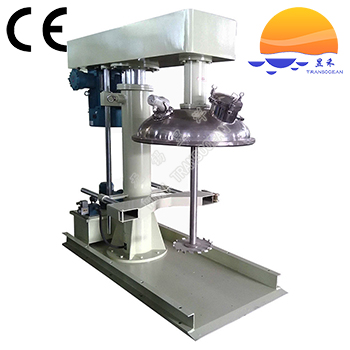

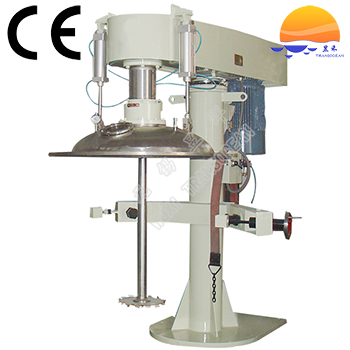

A vacuum deaeration high speed dispersion mixer is applicable for vacuum mixing and dispersion of solids into fluids in production of resins or alike. The vacuum equipment can simultaneously remove air bubbles at the same time of mixing to prevent the materials from being oxidized and ensure the quality of the products. The tank cover can be raised/ lowered separately by twin cylinders or moved together with the mixer head. A saw-tooth type dispersing disc is provided on the main shaft. Twin shaft dispersers are available as an option.
² Technical specifications:
Model | FLZ-200 | FLZ-400 | FLZ-600 | FLZ-1000 |
Main motor power(KW) | 7.5 | 15 | 22 | 30 |
Main shaft speed(r.p.m.) | 100-1400 | 100-1400 | 100-1400 | 100-1400 |
Speed control mode | By inverter |
Dispersing disc dia.(mm) | 200 | 300 | 350 | 400 |
Tank volume(L) | 200 | 400 | 600 | 1000 |
Lifting stroke(mm) | 900 | 900 | 1200 | 1200 |
Vacuum(MPa) | Max. -0.08 |
² Remarks:
l Technical data of each model can be customized.
l Large models not listed hereby can be customized.
