High Speed Disperser/Agitator

FS Series Multifunctional Dispersing Kettle

Release Time：2016-03-08

8888

Characteristics:

Integration of high speed disperser and low speed mixer
Saw-tooth shape dispersing disc and anchor type mixer
Upper dished end and dished bottom to reduce volatilization of mixing media
High efficiency of dispersion and dissolution of liquid-solid materials
Material of wetted parts: S.S.304/S.S.420/Galvanized #45 steel

Application:

Wet dispersing and mixing of high viscous and thixotropy materials such as emulsion paint, adhesive, etc.

Technical data:

Model		FS-2	FS-3	FS-5	FS-6	FS-8	FS-10	FS-12
Tank volume (m3)		2	3	5	6	8	10	12
Agitating motor power (KW)		5.5	5.5	7.5	7.5	11	15	18.5
Agitating shaft peed (r.p.m.)		50	50	50	50	41	41	41
Agitating blade dia. (mm)		1300	1500	1700	1700	1900	2100	2300
Dispersing motor power (KW)		13/16	13/16	22/28	22/28	22/28	26/34	30/42
Dispersing shaft speed( r.p.m.)		0-1450	0-1450	0-1450	0-1450	0-1470	0-1470	0-1480
Speed control mode		By inverter
Dispersing shaft quantity		2	2	2	2	2	2	2

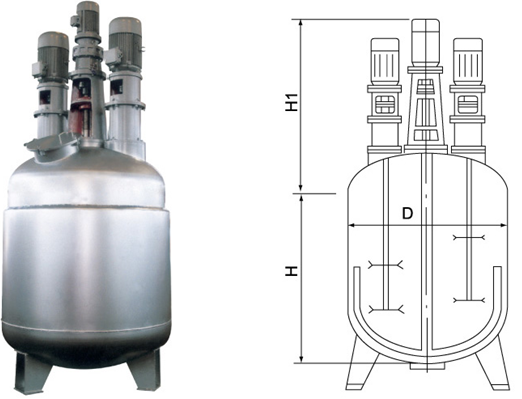

External dimension (mm)	D	1400	1600	1800	1800	2000	2200	2400
	H	1650	1765	2048	2400	2800	2950	3100
	H1	1930	2000	2200	2200	2500	2570	2620

Remark:

Technical data listed are for reference only, which shall be customized according to properties of materials to process.
High capacity not listed can be customized.
