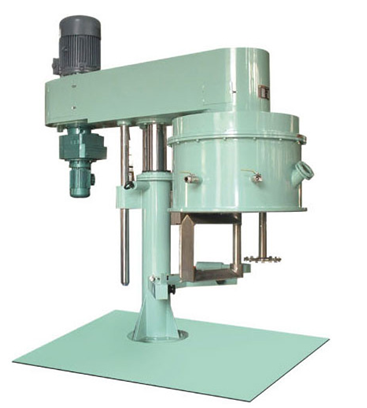

Integration of saw-tooth shape high speed dispersing disc and low speed scraper
Scrapers shall prevent mixing media from adhering to interior of movable tank
High efficiency of dispersion and dissolution of liquid-solid materials
Material of wetted parts: S.S.304/S.S.420/Galvanized #45 steel
Mixing head lifting/lowering mode: by hydraulic cylinder
Mixing head lowering speed: adjustable with regulating valve
Wet dispersing and mixing of printing ink, adhesive, resin, putty, etc.
Model
XSF-300
XSF-600
Dispersing motor power(KW)
18.5
37
Dispersing disc dia.(mm)
250
300
Dispersing shaft speed(r.p.m.)
0-1000
Speed control mode
By inverter
Agitating motor power(KW)
2.2
4
Agitating shaft speed(r.p.m)
8
6
Tank volume(L)
600
Vacuum (optional)
Max. -0.08MPa
Vacuum equipment for simultaneous de-aeration during mixing
YJ series discharge press to discharge final products from movable tank
