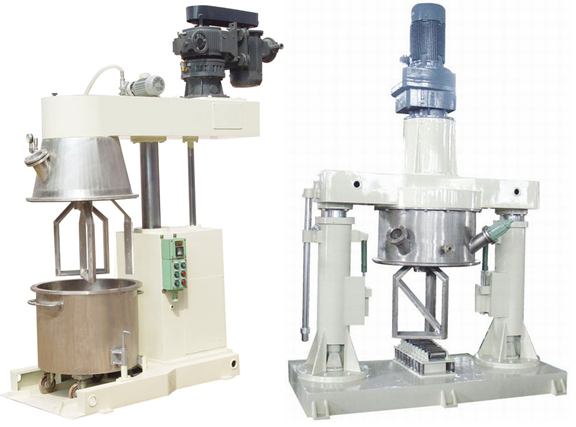

Single Pillar Agitator Dual Pillar Agitator
Characteristics:
Rotation frame and revolution blade with scraper
Scrapers shall prevent mixing media from adhering to interior of movable tank
High efficiency of dispersion and dissolution of liquid-solid materials
Material of wetted parts: S.S.304/S.S.420/Galvanized #45 steel
Mixing head lifting/lowering mode: by hydraulic cylinder
Mixing head lowering speed: adjustable with regulating valve
Application:
Wet dispersing and mixing of printing ink, adhesive, resin, putty, etc.
Technical data:
Model | XSJ-60 | XSJ-120 | XSJ-200 | XSJ-350 | XSJ-500 |
Main motor power (KW) | 4 | 5.5 | 7.5 | 22 | 37 |
Hydraulic motor power (KW) | 0.75 | 1.1 | 1.5 | 5.5 | 5.5 |
Tank volume (L) | 60 | 120 | 180 | 350 | 500 |
Revolution shaft speed (r.p.m) | 35 | 35 | 32 | 29 | 25 |
Rotation shaft speed( r.p.m.) | 95 | 95 | 87 | 60 | 45 |
Rack type | Single pillar type | Dual pillar type |
Vacuum (optional) | Max. -0.08MPa |
