High Speed Disperser/Agitator

TC Series Mixing Kettle

Release Time：2016-03-08

55555

Characteristics:

Mixing blade: impeller
High mixing efficiency for liquid-liquid / liquid-solid materials
Material of wetted parts: S.S.304/S.S.420/Galvanized #45 steel
Mounting mode: on platform

Application:

Mixing of low speed mixing of paint, ink, adhesive, etc.

Technical data:

Model		TC-0.5	TC-1	TC-2	TC-3	TC-4	TC-5	TC-6	TC-8	TC-10
Motor power(KW)		1.1	2.2	4	5	7.5	11	11	15	18.5
Tank volume(m3)		0.5	1	2	3	4	5	6	8	10
Shaft speed(r.p.m)		130	130	88	88	88	88	88	88	63
Agitating oar dia.(mm)		500	500	700	800	800	1200	1300	1250	1250
Agitating oar quantity		1	1	2	2	2	2	2	3	3

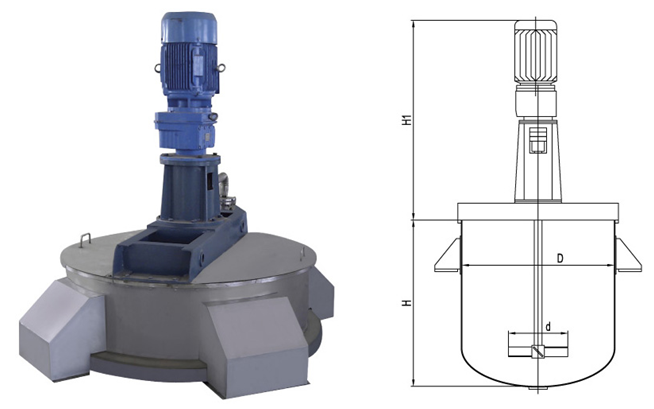

External dimension(mm)	D	800	1000	1400	1600	1600	1800	1900	2000	2200
	H	1060	1355	1575	1725	2025	2125	2300	2725	3050
	H1	550	550	1210	1240	1290	1510	1510	1660	1800

Remark:

Technical data listed are for reference only, which shall be customized according to properties of materials to process.
High capacity not listed can be customized.
