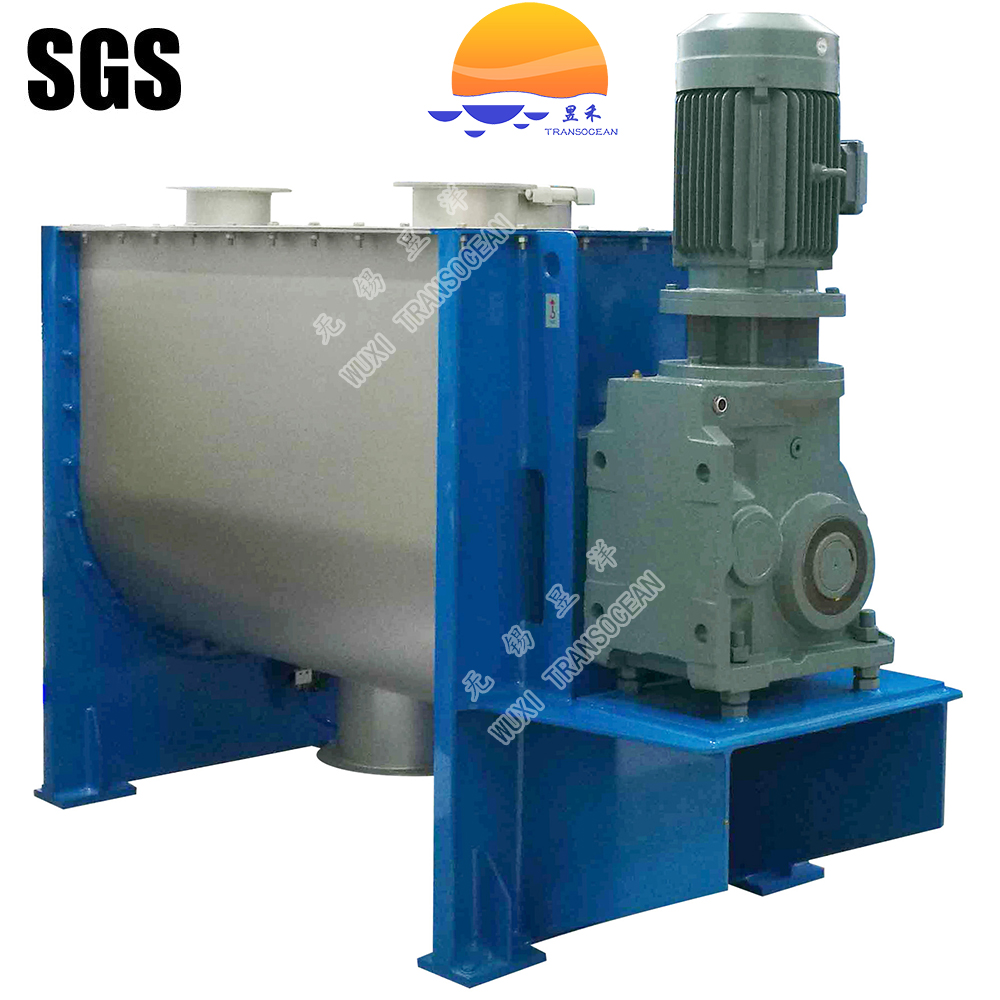

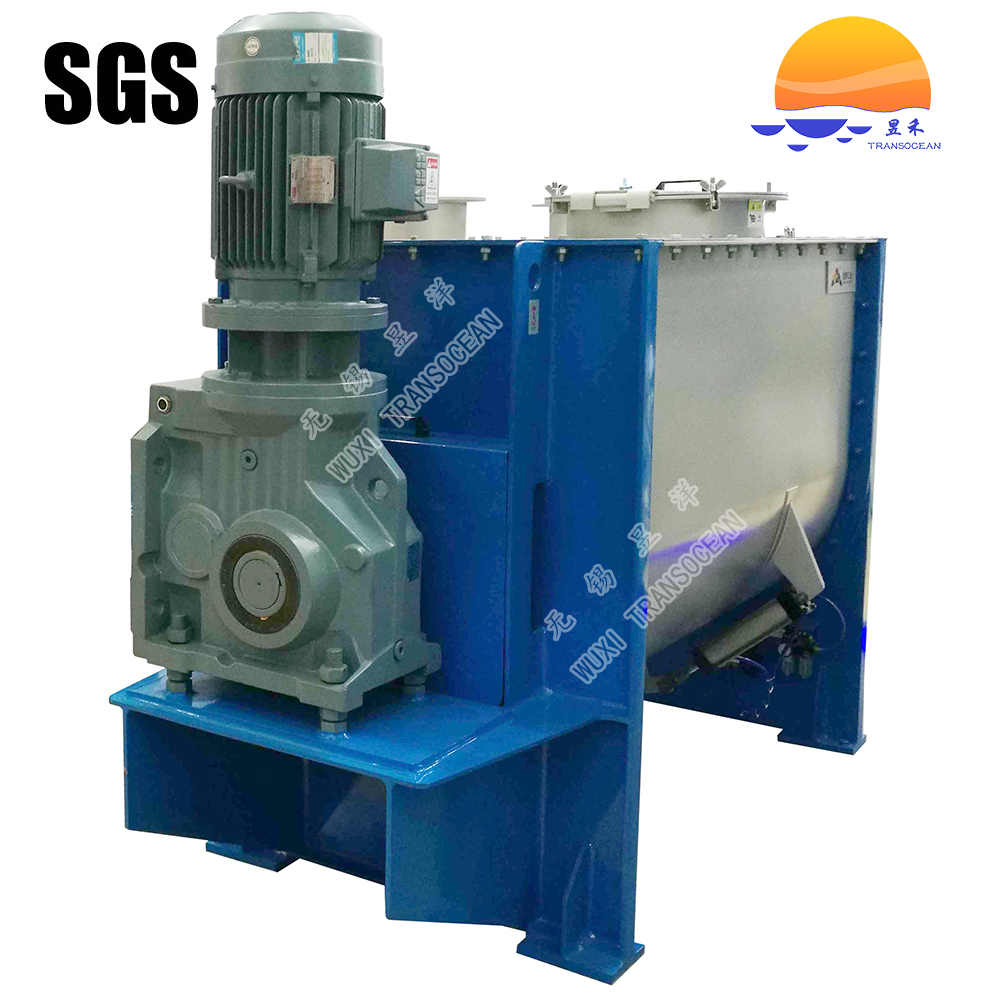

U shaped mixing chamber
2 or 3 ribbon shaped mixing blades
Internal ribbon drives mixing media from center to two ends, while external ribbon drives mixing media from two ends to center.
Powder/liquid/paste and powder shall be mixed thoroughly and effectively under forced convection
Material of wetted parts: S.S.304/S.S.210/M.S.
Lid can turn by 270° for discharging products and cleaning mixing parts
Wet/Dry mixing of emulsion paint, adhesive, putty, power coat etc.
Model
HRM-0.5
HRM-1
HRM-3
HRM-5
HRM-10
HRM-15
Full capacity of U chamber (L)
500
1000
3000
5000
10000
15000
Load factor
0.4～0.6
Main motor power (KW)
5.5
11
18.5
30
55
75
Mixing shaft speed (r.p.m.)
0-66
0-41
0-33
0-26
0-20
0-17
Outline dimension (mm)
L
1670
1980
2880
3520
4500
5360
W
1140
1440
1900
1950
2070
2250
H
1300
1500
2083
2230
2670
3070
Electrical tilting device for discharge
Speed control by inverter
