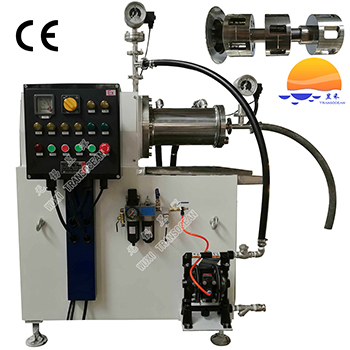

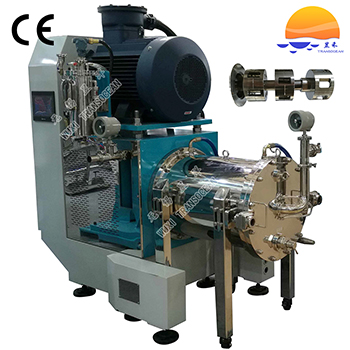

² Characteristics:
l Turbine grinding wheels provide high impact and shear to grinding media and reduce dead area significantly and bring out super fine products as fine as nanometers.
l Material of grinding disc and spacer: S.S.440C/S.S.420/ ZrO2
l Material of grinding chamber: S.S.440C/PU/SIC/SSIC/ceramic
l Discharge of products: with static separating cartridge
l Sealing mode of main shaft: double face mechanical seal
l Sealant circulating in mechanical seal is compatible with solvent in grinding media to avoid pollution to grinding media.
l Cooling jacket outside sealant tank and cooling jacket outside grinding chamber are adopted to cool down mechanical seal and grinding media.
l Adjustable range of pressure limit switch at material inlet: 0-6 bar
l Adjustable range of temperature limit switch at product outlet: 0-100℃
² Fault alarm on control panel shall be activated in such cases:
l Pressure of cooling water in cooling jacket: too low
l Working pressure in grinding chamber: too high
l Temperature at product outlet: too high
l Circulation of coolant for mechanical seal: not work
l Level of coolant for mechanical seal: too low
l Motor load: overload
² Applications:
l Wet grinding of lithium cell, ink, digital printing ink, dye, pesticide, nanometer coating, etc.
² Technical data:
Model | TWS-5 | TWS-10 | TWS-15 | TWS-30 | TWS-50 | TWS-100 |
Main Motor Power(KW) | 11-15 | 18.5-22 | 22-30 | 45-55 | 55-75 | 90-110 |
Effective Chamber Volume(L) | 5 | 5 | 15 | 30 | 50 | 100 |
Output Capacity(L/h) | 20-100 | 20-100 | 50-300 | 100-500 | 100-800 | 200-1500 |
Cooling Water Consumption(m3/h) | 1 | 1 | 1.7 | 2.0 | 2.4 | 2.6 |
Compressed Air Pressure(MPa) | 0.4-0.6 | |||||
Grinding media | Φ0.2-1.6mm 94.50%+ ZrO2 beads | |||||
Material feeding | By diaphragm pump/gear pump | |||||
