Ø Introduction:

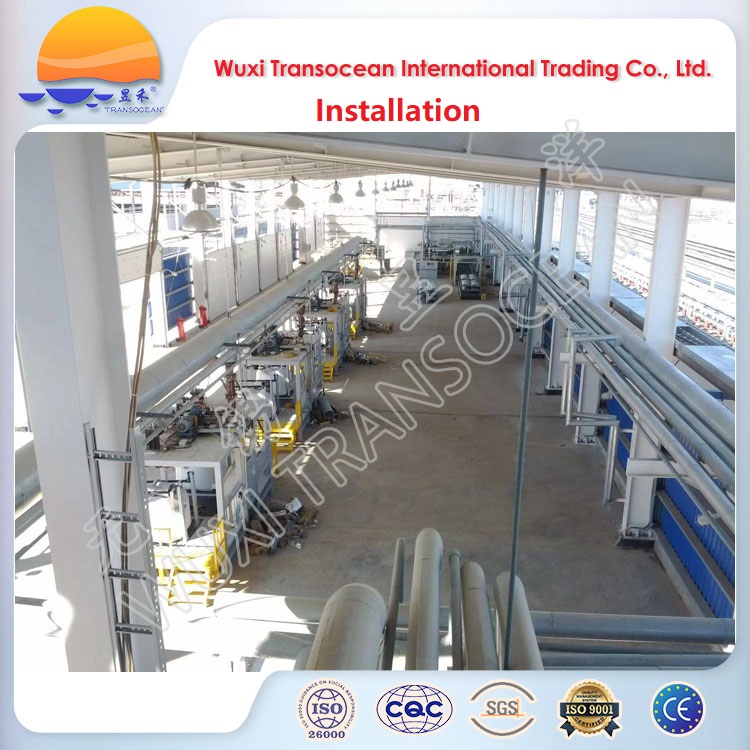

TRANSOCEAN® semi-automatic asphalt packing machine is an ideal asphalt (bitumen) bag filling machine. It is composed of 2 buffer silos, 2 asphalt filling nozzles, a work platform and a control system. Our asphalt (bitumen) packing machines have been exported to Kazakhstan, Saudi Arabia, UAE, Indonesia, Canada and other countries, and have been well received by our clients.
Ø Applications:

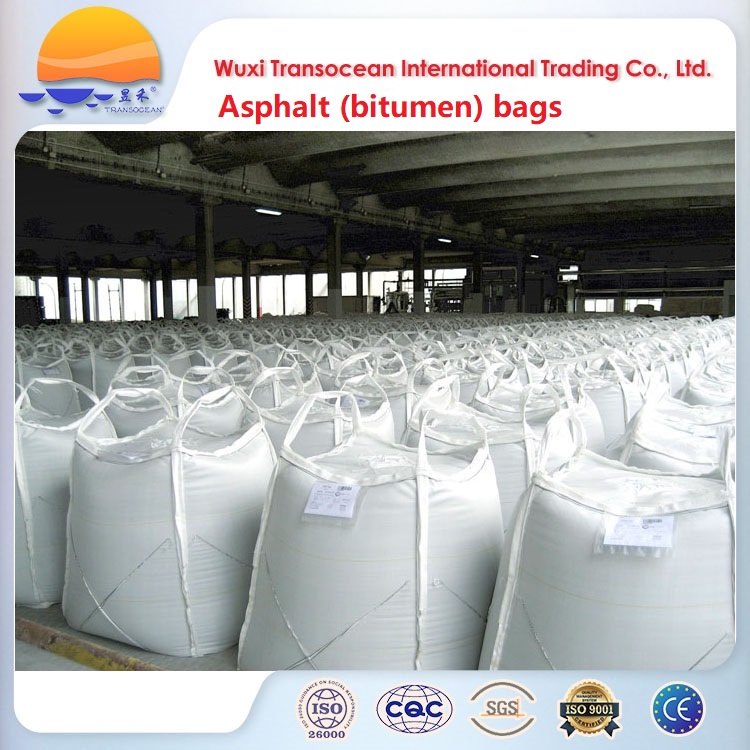

TRANSOCEAN® semi-auto asphalt packing machine is applicable for quantitative filling of asphalt (bitumen), wax, paraffin, waterproof coatings and alike with 200kg/300kg/500kg/1000kg bags.
Ø Features:
l Two separate double-channel filling nozzles with electric heaters, insulation jackets and temperature sensors are adopted to prevent drop or wire drawing from the nozzles.
l The filling process is divided into two stages i.e. fast adding and slows adding.
l The multi-functional bag hanging and sealing system ensures firm sealing without leakage.
l All seal rings are made of PTFE.
l Automatic gravimetric filling with Mettler Toledo load cells
l Real-time display of net weight of bitumen packed
l Filling nozzles won’t work if the packing bag is not in place.
Ø Advantages:
l Energy saving
l Protects operators from burns
l Perfect filling accuracy
Ø Technical specifications:
Item | Specification |
Model | SH-02-1000 |
Quantity of filling head | 2 |
Packing bag size (kgs) | 200/300/500/1000 |
Packing speed | 15-20 bags/h |
Tolerance | ±0.2% |
Power supply | AC 3PH/380V/50Hz (can be customized) |
Compressor air supply | 4-8bar, 0.1m3/min |
Flow rate of bitumen (m3/h) | 25～35 |
Bitumen temperature (℃) | ≤130 |
Heating mode | by thermal oil or by Steam |
Outline dimension (L×W×H, mm) | 10m×3m×4m(L×W×H) |
N.W. (KG) | 2500 |
