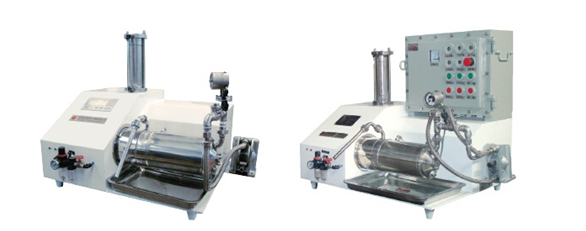

Pilot Horizontal Bead Mill

3

Characteristics:

  • Grinding pegs provide high impact and shear to grinding media and reduce dead area largely

  • Material of grinding peg: high rigidity alloy/ ZrO2

  • Material of grinding chamber: S.S.440C/ ZrO2

  • Double face mechanical seal is adopted to ensure reliability

  • Sealant circulating in mechanical seal is compatible with solvent in grinding media to avoid pollution to grinding media

  • Cooling jacket outside grinding chamber to cool down mechanical seal and grinding media

  • Cooling system inside hollow rotor to cool down grinding media

  • Adjustable range of pressure limit switch at material inlet: 0-6 bar

  • Fault alarm on control panel shall be activated in such cases:

    Pressure of cooling water: too low

    Working pressure in grinding chamber: too high

    Temperature at product outlet: too high

    Level of coolant for mechanical seal: too low

    Motor load: overload

Application:

  • Wet grinding of paint, ink, printing ink, dye, pesticide, color paste, non-mineral filler, etc.

Technical data:

Model

JWS-2

Main Motor Power(KW)

3

Main Shaft Speed(r.p.m.)

0-2000 (controlled   by inverter)

Effective Chamber   Volume(L)

2

Cooling Water   Consumption(m3/h)

0.3-0.6

Compressed Air   Pressure(MPa)

0.6-0.8

Grinding media

Φ0.8-1.0mm   94.50%+ ZrO2 beads
