² Introduction:

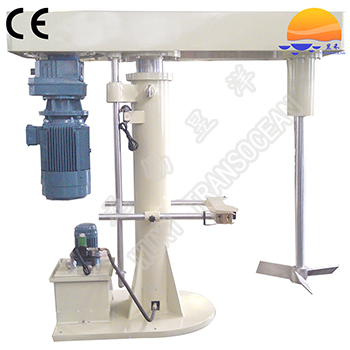

A hydraulic lifting agitator characterizes a three inclined blade turbine type mixing device. A two blade mixer or a four blade mixer is alternative. It creates both axial flow and radial flow, and therefore ensures comprehensive mixing functions. The agitating head can be raised by the hydraulic power pack for loading/unloading of a mixing tank. Tank lids and tank fixing devices are available for option. It is easy to clean the agitator and change products.
² Technical specifications:
Model | DJ-2.2 | DJ-5.5 | DJ-11 | DJ-22 |
Main motor power(KW) | 2.2 | 5.5 | 11 | 22 |
Main shaft speed(r.p.m.) | 0-280 | 0-280 | 0-280 | 0-280 |
Speed control mode | By inverter |
Impeller dia.(mm) | 200 | 300 | 500 | 700 |
Tank volume(L) | 100 | 200 | 500 | 1000 |
Lifting stroke(mm) | 600 | 800 | 900 | 1200 |
Speed control | By inverter |
² Remarks:
l Technical data of each model can be customized.
