Ø Introduction:

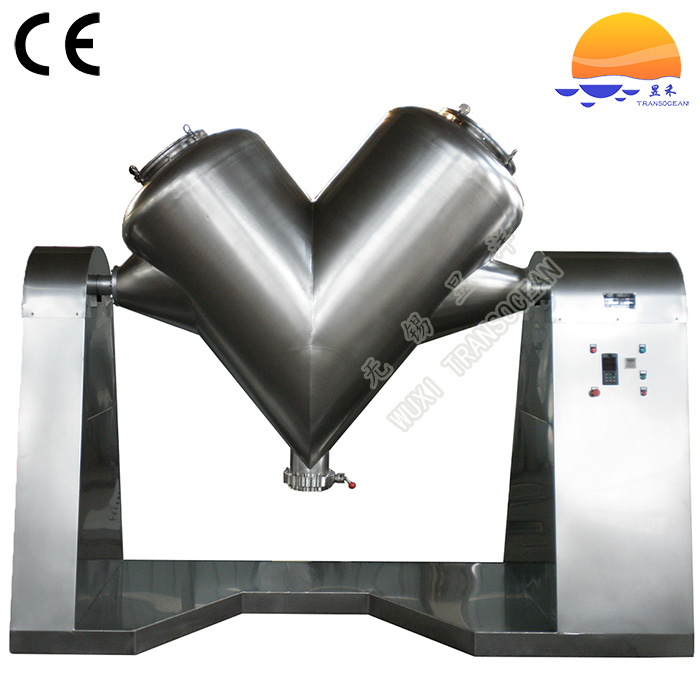

The V-shape mixer is an efficient asymmetric mixer. There is a motor and a reducer at one end. The reducer drives the V-shaped material tank to rotate via a coupling. The materials flow and get mixed in the rotating vessel. A vacuum feeding device is available as an option for fast feeding. This machine is suitable for mixing powders and granules with good fluidity and small differences in physical properties. Because of the stable material flow in the V-shape mixing tank it will not damage the original shape of the materials. Therefore, the V-shape mixer is also suitable for the mixing of granular materials that are liable to break and wear, as well as the mixing of fine powders, blocks, and materials with a certain amount of moisture.
Ø Applications:
This V-shape mixer is suitable for mixing of powders and/or granules in chemical, pharmaceutical, food, flavoring, dye, graphite, iron powder, plastic, rubber, feed, ceramics, metallurgy and other industries.
Ø Features:
l Simple structure
l The mixing tank is sealed to prevent environmental pollution.
l The tank is made of stainless steel and the surface is finely polished.
l Less material residue
l Meet GMP requirements
Ø Advantages:
l Fast mixing
l Low failure rate
l Small footprint
l Easy to clean
Ø Benefits for you:
l Cut down the investment in equipment and plant.
l Save production costs
l Reduce maintenance work
Ø Technical specifications:
Model | Total volume (L) | Working volume （L） | Motor power (KW) | Shaft speed (rpm) | Discharge Height (mm) | Feeding port dia.（mm） | Discharge port dia.（mm） | |
VM-100 | 100 | 40 | 1.1 | 15 | 650 | 250 | 80 | |
VM-200 | 200 | 80 | 1.5 | 15 | 750 | 300 | 100 | |
VM-300 | 300 | 120 | 1.5 | 15 | 750 | 300 | 100 | |
VM-500 | 500 | 200 | 2.2 | 15 | 750 | 300 | 150 | |
VM-1000 | 1000 | 400 | 3 | 12 | 750 | 400 | 150 | |
VM-1500 | 1500 | 600 | 4 | 10 | 750 | 400 | 200 | |
VM-2000 | 2000 | 800 | 5.5 | 10 | 750 | 400 | 200 | |
VM-2500 | 2500 | 1000 | 7.5 | 8 | 750 | 400 | 200 | |
VM-3000 | 3000 | 1200 | 11 | 6 | 750 | 400 | 200 |
Density of material to mix≤7g/cm³
Liquid content in material to mix≤10%
Vacuum feeding device to prevent dusts from escaping during feeding of materials
Forced mixer to mix materials with poor fluidity
Spraying device to load liquid
Cooling/heating jacket
