Rotor and stator: forge pieces precisely processed in CNC processing center
Material of wetted parts: S.S.304/S.S.316L/S.S.321

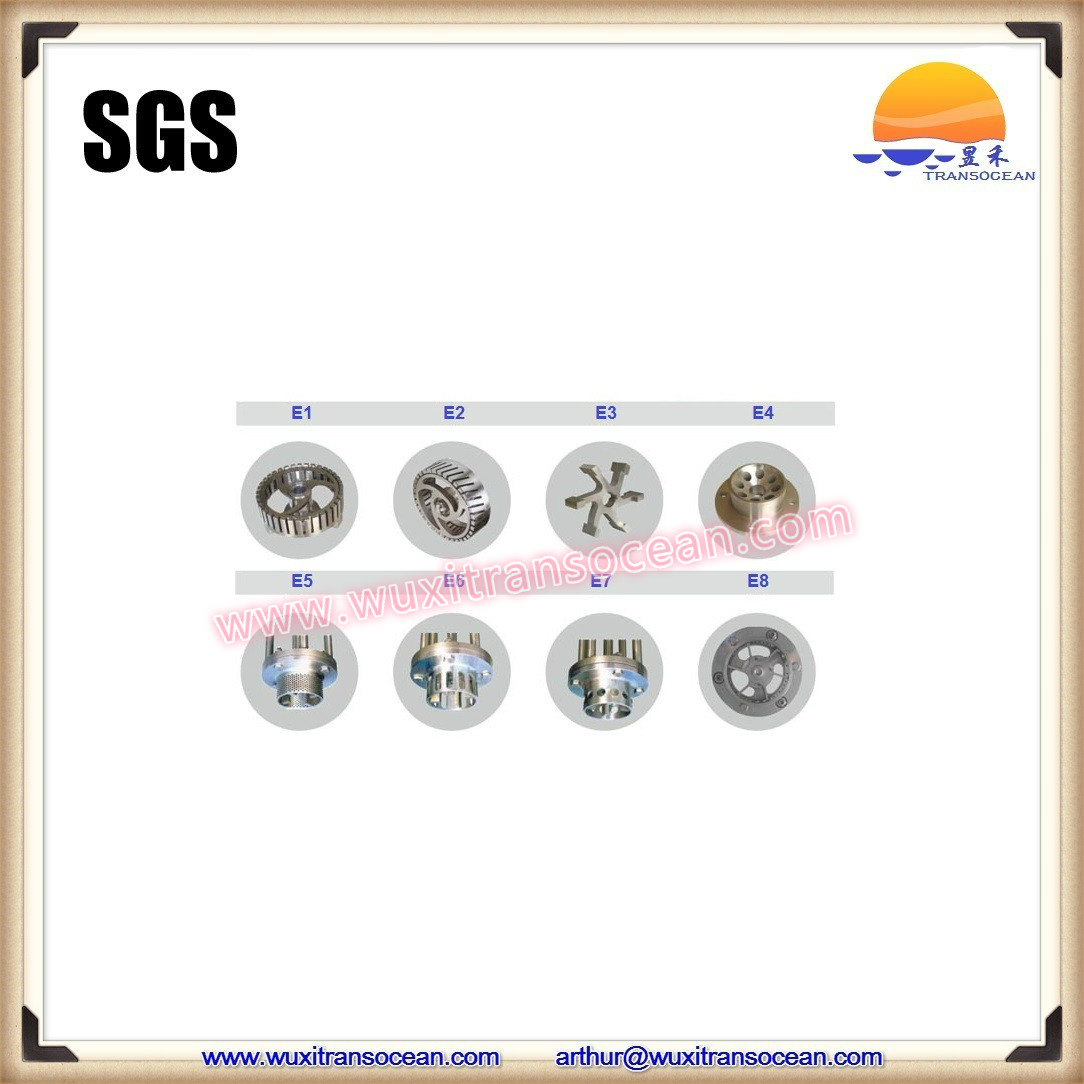

Various shapes of emulsifying heads
No dead zone in the gap between rotor and stator
High effective, time saving, energy saving, low-noise
Easy to maintain, clean and change product
High effective emulsification & homogenizing to liquid-liquid materials, shearing & dispersion to liquid-solid materials
Materials in tiny gap between rotor and stator are subject to the combination of shearing, centrifugal squeeze, friction, impact, tearing and turbulence generated by strong momentum resulting from high velocity and high frequency mechanical effect of rotor.
Output products characterize narrow particle distribution range and good uniformity
Wet mixing, dispersing, emulsification and homogenizing of various paste, suspension and cream in areas such as paint, oil ink, lubricant, food, pharmacy, pesticide, detergent, cosmetics.
Model | Motor power (KW) | Revolution (rpm) | Linear velocity (m/s) | Processing capacity (L) | Lifting/Lowering stroke (mm) |
FRF-4 | 4 | 2885 | 16 | 200 | 800 |
FRF-7.5 | 7.5 | 2905 | 18 | 400 | 900 |
FRF-11 | 11 | 2918 | 20 | 600 | 900 |
FRF-15 | 15 | 2917 | 22 | 800 | 900 |
FRF-18.5 | 18.5 | 2945 | 23 | 900 | 1200 |
FRF-22 | 22 | 2920 | 27 | 1000 | 1200 |
FRF-30 | 30 | 1465 | 19 | 1500 | 1400 |
FRF-37 | 37 | 1475 | 21 | 2000 | 1600 |
FRF-55 | 55 | 1477 | 23 | 3000 | 1600 |
FRF-75 | 75 | 1475 | 25 | 5000 | 1600 |
Belt type clamping arm or mechanical scissor type clamping arm
Vacuum equipment
