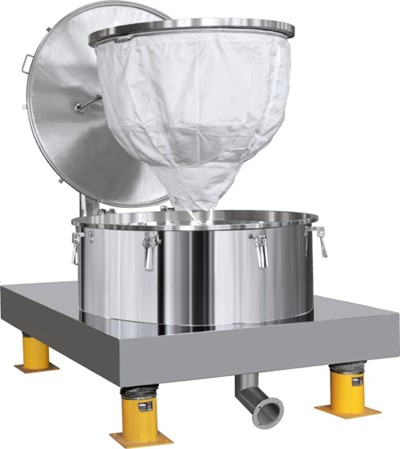

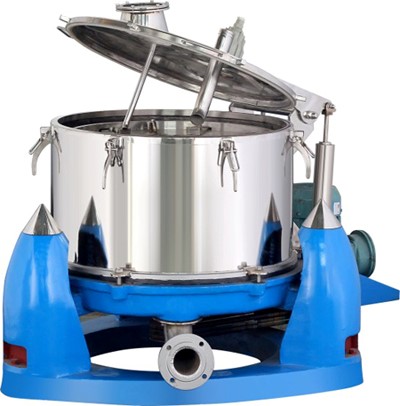

PSD/SD Serial Top Discharge Bag Centrifuge

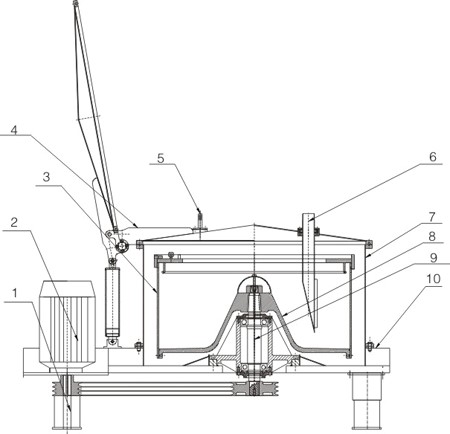

• PSD Schematic drawing

1.Damper  2.Motor  3.Drum  4.Cover  5.Rinsing port  6.Loading port  7.Shell  8.Drum bottom  9.Shaft assembly  10.Base

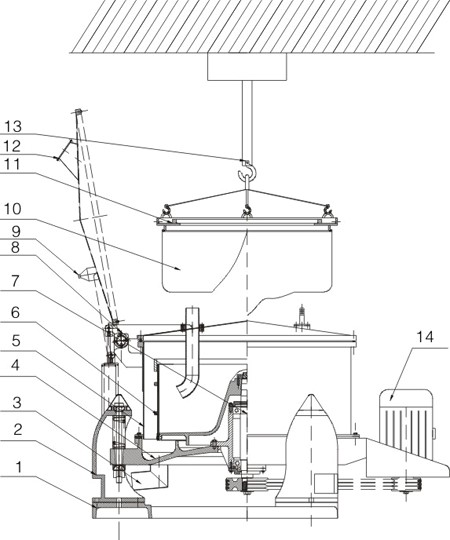

• SD Schematic drawing

1.Base    2.Foot    3.Drain   4.Large dish    5.Shell  6.Drum  7.Shaft assembly

8.Flip system  9.Lamp  10.Filter bag  11.Hanger plate  12.Viewing window  13.Hoisting device  14.Motor

Characteristics:

• Filter medium shall be loaded from loading port into the drum. By virtue of centrifugal force liquid in filter medium shall be drained out of centrifuge and solid shall be kept in filter bag. Filter bag and screen shall be lifted from centrifuge to unloading place.

• Smooth transition on structure is designed and exterior of centrifuge is polished to ensure sanitary of centrifuge. Wetted parts are made of stainlessness. Space between drum and shell can be cleaned after opening cover.

• Base plate is adopted to descend barycenter of centrifuge. Base plate can work as an operation platform to facilitate operation.

• Motor is mounted on bottom of centrifuge to save space.

• High viscosity damper is adopted to ensure perfect damping function and easy maintenance.

• Loading port, rinsing port, viewing window and illumination lamp are equipped on top cover.

• Start is controlled by inverter.

• Separation factor is adjustable.

• Silicone rubber seals or fluorine rubber seals are adopted.

• Explosion-proof motor is adopted on PBZ serial centrifuge to dust from belt transmission.

• Comply with GMP sanitary standard.

Application:

• Separation of toxic and hazardous solid-liquid.
