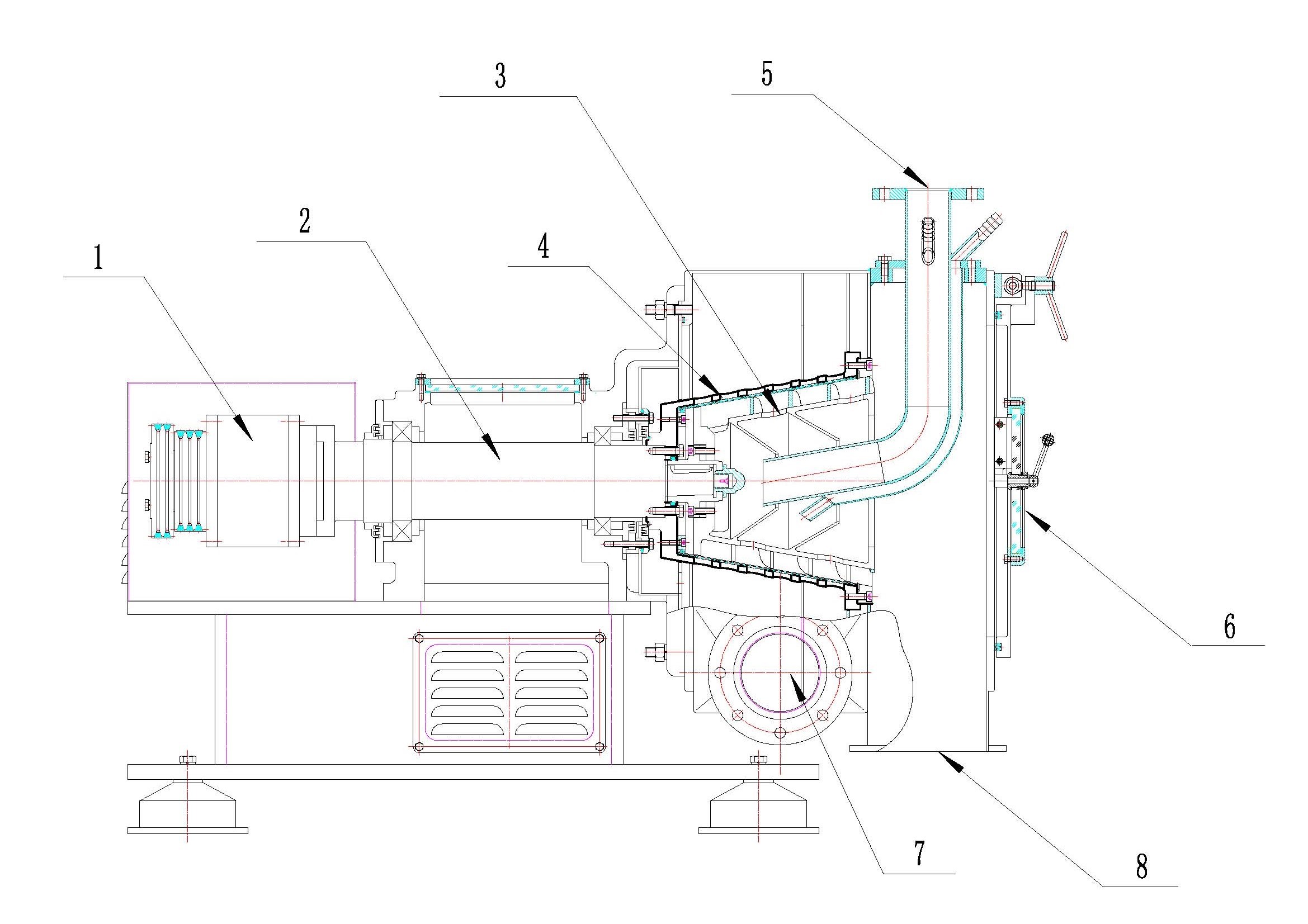

1.Differential 2.Driver assembly 3.Inner screw drum4.Outer drum 5.Loading port 6.Viewing window 7.Drain 8.Discharge port
Continuous working
Various design of rotary drum and spiral drum can be applicable in wide range.
Wetted parts are made of austenitic stainless steel.
Seals and separate recycled oil lubricating system are adopted.
Closed shell shall ensure safety of operators and protect environment.
V belt slipping unloading and overload protection device shall ensure safe and reliable running.
Comply with GMP sanitary standard.
Solid-liquid separation of suspension in chemical, pharmaceutical, food, metallurgy, mining, etc.
Solid content proportion in suspension: 10-80%
Solid particle diameter: 0.13-5mm (0.2-2mm better)
Type of solid: linear or crystalline solid particles such as citric acid, gulonic acid, salt, fruit juice, sulfur ammonium and urea
Item | Capacity (m3/h) | Power (KW) | Shaft speed (r.p.m.) | Separation factor (Fr) | Outline dimension (L*W*H) | N.W. (KG) |
LWL200 | 1.5 | 3 | 4350 | 2110 | 700*800*570 | 230 |
LWL250 | 3.5 | 5.5 | 3700 | 1913 | 910*1050*800 | 560 |
LWL320 | 7 | 7.5 | 3300 | 1950 | 940*1165*950 | 700 |
LWL350 | 10 | 11 | 2800 | 1530 | 1170*1360*1085 | 900 |
LWL400 | 15 | 15 | 2900 | 1880 | 1150*1500*1150 | 1000 |
LWL450 | 20 | 22 | 2500 | 1570 | 1390*1500*1315 | 1100 |
LWL520 | 25 | 30 | 2200 | 1406 | 1480*1920*1470 | 1800 |
LWL600 | 35 | 37 | 2200 | 1623 | 1560*2000*1470 | 2000 |
LWL700 | 50 | 55 | 2800 | 1400 | 2150*2100*1650 | 4000 |
LWL1000 | 100 | 90 | 1600 | 1400 | 2600*2700*2600 | 8000 |
