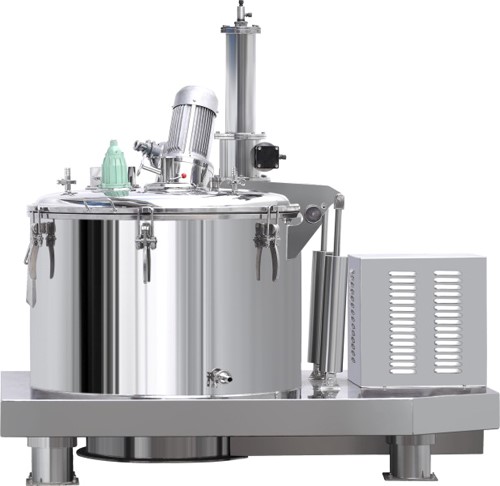

LGZ Serial Scraper Bottom Discharge Centrifuge

07

08

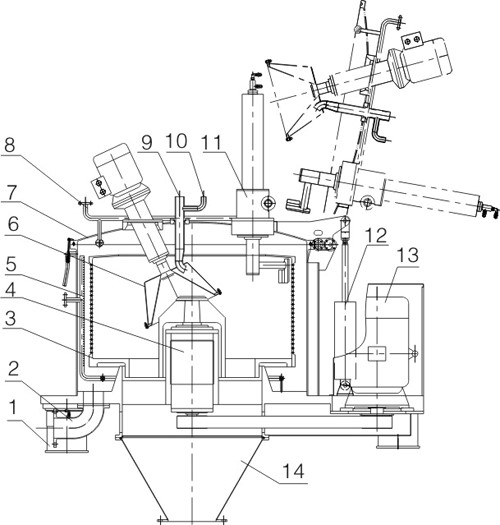

1.Damper 2.Drain  3.Drum   4.Shaft assembly  5.Lower inline washing device   6.Oblique plate distributor    7.Cover

8.Upper inline washing device    9.Loading port    10.Rinsing port  11.Scraper assembly  12.Cylinder for cover  13.Motor  14.Unloade port


Characteristics:

  • PLC is applicable for automation, which can monitor loading, elementary filtration, wash, fine filtration and unload all the way.

  • Start is controlled by inverter.

  • Separation factor is adjustable.

  • Energy consumption brake is adopted to avoid friction dust pollution

  • Silicone rubber seals or fluorine rubber seals are adopted to ensure closed running.

  • Internal chamber of centrifuge is protected with nitrogen and meets explosion-proof requirements.

  • Pneumatic parts are adopted to ensure sanitary of working condition.

  • Base plate is adopted to descend barycenter of centrifuge. Base plate can work as an operation platform to facilitate operation.

  • Counter-weight and high viscous liquid damper are adopted to prevent ground and surrounding environment from vibration interference.

  • Safety protection:

    Speed detection, vibration protection, cover interlock, overload and overheat protection of motor, situ conservation of scraper, linkage of scraper and drum, mechanical and electrical control of lifting, interlock linkage lock scraper and drum.

  • Comply with GMP sanitary standard.

Application:

  • Solid-liquid separation in pharmaceutical, fine chemical, food, etc..

Technical data:

Item

LGZ800

LGZ1000

LGZ1250

LGZ1320

LGZ1500

LGZ1600

Drum dia.(mm)

800

1000

1250

1320

1500

1600

E. H. of drum(mm)

400

450

630/800

630/800

750

800/1000

E. V. of drum(L)

100

155

354/450

400/510

612

775/970

Max. Load(KG)

140

210

480/580

520/660

825

1150/1300

Speed(r.p.m.)

1200

1000

1000

900

850

800

Separation factor(Fr)

645

560

700

598

606

573

Motor power(KW)

7.5

11

22/30

22/30

37

37/45

N.W.(KG)

2000

2600

4200/4500

4500/4800

8000

9500/10000

Outline dimension(mm)

1800*1300*1900

1960*1600*2000

2300*1800*2400

2300*1800*2400

2800*2100*2700

2980*2250*3000

Option:

  • Spray rinsing system

  • Nitrogen protection system

  • Material level controller

  • PLC

  • Hydraulic operation system

  • Auxiliary Pneumatic scraper

  • Wetted parts: S.S.304, S.S. 316L, S.S.321, titanium, Hastelloy, rubber lining, PE lining, Halar coat, etc.
